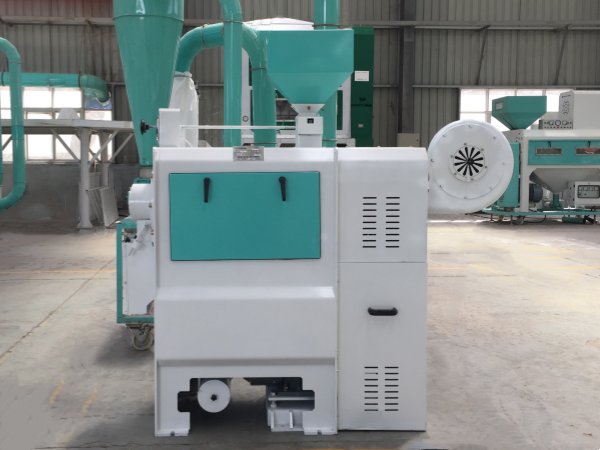

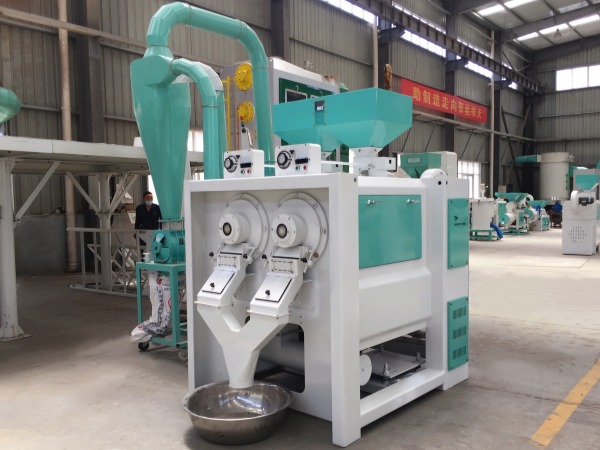

HTD Series Barley Dehulling Machine
HTD Series Emery Roller Barley Huller is a patented equipment developed by WinTone machinery specifically for the hulling and peeling of barley, addressing the challenges posed by its hard husk. With a single-pass hulling rate exceeding 95%, it can further refine barley through additional peeling and whitening to meet diverse requirements. Equipped with a high-strength (main shaft) and high-wear-resistant (emery roller), it ensures continuous operation and extends service life.
Working Principle
The specially designed emery roller, with its sharp abrasive particles, grinds away the husk, while friction between the barley and the peeling sieve facilitates complete hull removal. Simultaneously, the bidirectional air intake from the main shaft, combined with a powerful bran-aspiration system, forces the husk to separate from the barley and discharge through the sieve pores. An exhaust air device at the outlet reduces the temperature of the finished product.
Features
1. High Hulling Efficiency
Proprietary technology ensures even force distribution on grains, improving hulling rate, reducing breakage, and delivering superior peeling results.
2. High Capacity & Low Energy Consumption
Processing capacity ranges from 1 to 10 tons/hour, with energy consumption only half that of traditional hullers, ensuring high productivity and low power usage.
3. Wide Application
Suitable for both edible-grade and feed-grade barley processing.
4. Eco-Friendly Design
Employs a pure dry-peeling method, enabling dust-free production. The husk removal rate can be adjusted based on customers' quality requirements for the final product.
Finished Product
Technical Index
|
Type |
Yield(t/h) |
Power(kw) |
Air Suction(m³/h) |
Wind Pressure(pa) |
One Peeling Rate(%) |
Twice Peeling Rate(%) |
Weight（kg） |
Dimension(mm) |
|
HTD18 |
2-2.5 |
18.5-22＋2.2 |
800-1200 |
3660-3720 |
65 |
95 |
760 |
1935×735×1892 |
|
HTD25 |
3-4 |
22-30＋2.2 |
1000-1500 |
3660-3720 |
65 |
95 |
805 |
2013×693×2222 |
|
HTD30 |
4-6 |
37-45＋2.2 |
2600-3400 |
4500-5500 |
65 |
95 |
1050 |
2191×950×2222 |
|
HTD25×2 |
6-8 |
44-60＋3 |
4000-6000 |
1800-2100 |
65 |
95 |
1500 |
2033×1450×2222 |
|
HTD30×2 |
8-12 |
74-90＋3 |
5000-7000 |
4500-5500 |
65 |
95 |
1950 |
2332×1450×2222 |
