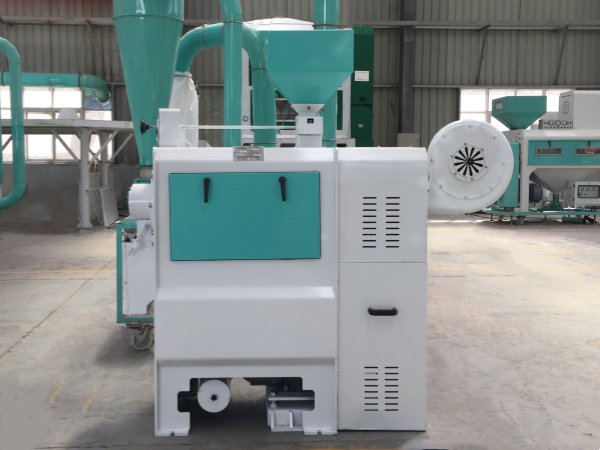

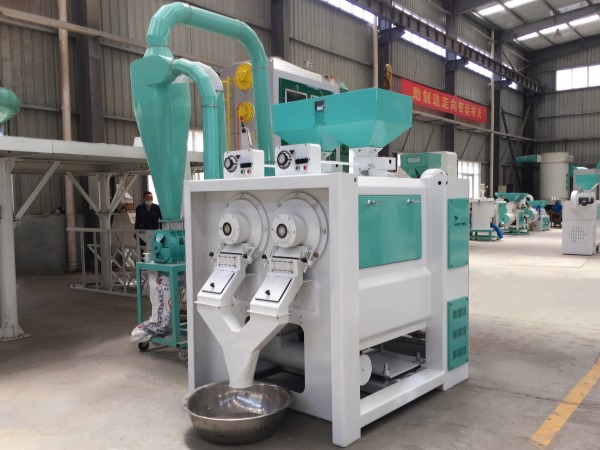

MTPS-R Series Maize Sand Roller Peeling Machine
MTPS-R Series Maize Sand Roller Peeling Machine is the third generation of corn peeling equipment optimized and improved based on the prototype of FTP-600 peeling machine, with a primary dehulling rate of 60% and a secondary dehulling rate of over 95%. It is used in corn processing enterprises and feed processing enterprises in response to the feed enterprise's demand for large-scale corn peeling machines.
Working Principle
The new MTPS-R Series Corn Milling Machine adopts the "dry cutting and peeling" technology, which can achieve layered fine cutting and peeling of corn endosperm and one-time peeling of embryo, thus achieving low crushing rate and good peeling effect on corn. The primary purification rate is 60%, and the secondary purification rate is over 95%. At the same time, compared to traditional peeling machines, with the same power, the output can be increased by 1.5-2 times, saving energy and reducing consumption, rapidly increasing the profit point of corn processing enterprises.
Features:
1. New upgrade: The Rui series is the optimized and improved third-generation corn peeling machine, which is composed of high-strength sand rollers and wear-resistant screens, equiped with an air spray system inner to improve the separation efficiency of bran and impurities.
2. Large output: Multiple models can cover the processing requirements of 1-6 tons / hour by one machine, specially 12 tons / hour corn peeling machine with double body.
3. High processing efficiency: A primary dehulling rate of 60% and a secondary dehulling rate of over 95%, save energy consumption.
4. Easy to operate: Adjustable ballast size as customers' required, increase efficiency.
Finished Product
Technical Parameter
|
Type |
Yield(t/h) |
Power(kw) |
Air Suction(m³/h) |
Wind Pressure(pa) |
One Peeling Rate(%) |
Twice Peeling Rate(%) |
Weight（kg） |
Dimension(mm) |
|
MTPS18R |
2-2.5 |
18.5-22＋2.2 |
800-1200 |
3660-3720 |
65 |
95 |
760 |
1935×735×1892 |
|
MTPS25R |
3-4 |
22-30＋2.2 |
1000-1500 |
3660-3720 |
65 |
95 |
805 |
2013×693×2222 |
|
MTPS30R |
4-6 |
37-45＋2.2 |
2600-3400 |
4500-5500 |
65 |
95 |
1050 |
2191×950×2222 |
|
MTPS25R×2 |
6-8 |
44-60＋3 |
4000-6000 |
1800-2100 |
65 |
95 |
1500 |
2033×1450×2222 |
|
MTPS30R×2 |
8-12 |
74-90＋3 |
5000-7000 |
4500-5500 |
65 |
95 |
1950 |
2332×1450×2222 |
