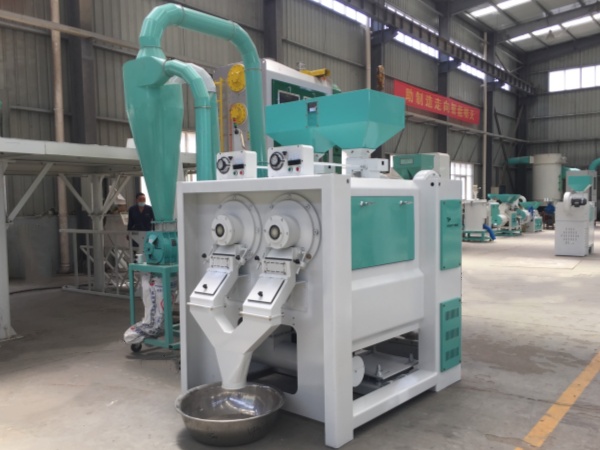

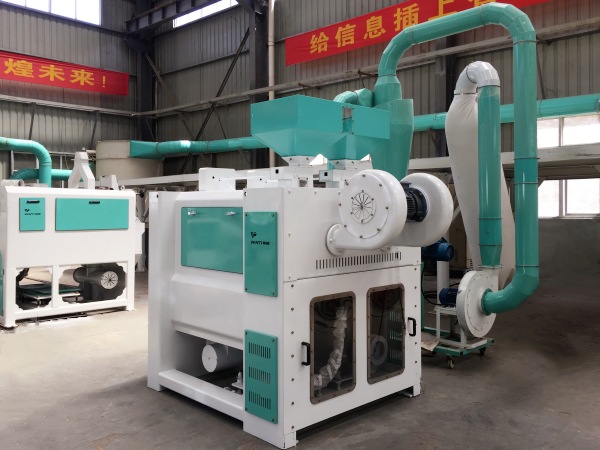

YTY Series Chickpea Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.

First, chickpeas are sent to the propelling chamber through charging regulation device where the spiral pusher conveys them to emery roll whose sharp appearance cuts the bran with some speed, making the corn particles rub against the sieve plate, so as to peel the materials. The outlet is equipped with air suction inlet to further cool down the bean and clean the finished product for the second time.

Performance Advantages
1. According to the characteristics of chickpeas, using fine-grained sand roll and low speed design, the removal rate is above 98%, the crushing rate is within 3%, and the finished product has high integrity;
2. Use built-in motor technology to save installation space;
3. High-strength spindle and high-wear-resistant sand rolls ensure the continuous service life of the equipment;
4. Two-way air inlet to the main shaft, air suction at the discharge port, while reducing the temperature of the finished material, cause the multi-stage cleaning of the material skin and impurities.

Finished Product

Technical Parameter
