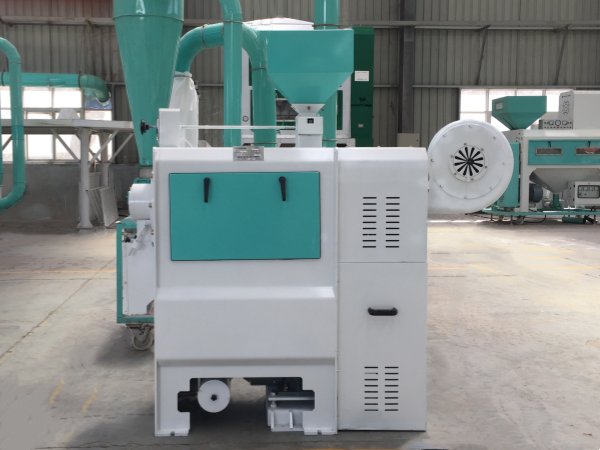

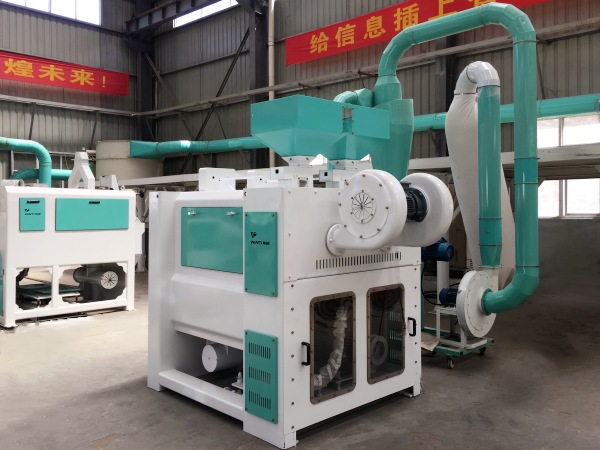

MTPS Soybean Peeling Machine
MTPS Soybean Peeling Machine is used in the peeling process for soybean processing and primary and further peeling process for food processing enterprises. It can be used in series or in parallel in complete processing line according to technological demand.
Working Pricinple
The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans skin continuously, which destroys the bonding strength among corn skin, material skin and endosperm, and makes corn skin separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.
Performance Advantages
1. Intelligent Design
The MTPS series soybean peeling machine is a large-scale automated machine with advanced intelligence and user-friendly operation.
2. High Efficiency
The MTPS series achieves a net dehulling rate of over 98% with less than 3% breakage, ensuring high integrity of the final product.
3. Low Energy Consumption
Designed for energy efficiency and compact footprint, the MTPS series can operate as a standalone unit or integrate seamlessly into production lines.
4. Wide Applicability
By adjusting technical parameters, the MTPS dehuller adapts to various bean types for versatile processing.
5. Stable Performance
Equipped with a high-strength main shaft and wear-resistant sand rollers, the machine guarantees durable and uninterrupted operation.
Finished Product
Technical Parameter
|
Type |
Emery Roll |
Emery Roll Length(mm) |
Spindle Speed(r/min) |
Capacity(t/h) |
Power(kw) |
Air Volume(m³/h) |
Dimension(mm) |
|
MTPS-18Y/A |
Φ180 |
660 |
1300 |
1-1.5 |
22 |
|
1370×700×1900 |
|
MTPS-18Y/B |
Φ180 |
660 |
1300 |
1-1.5 |
22 |
1500-1800 |
1410×1220×2030 |
|
MTPS-25Y/A |
Φ240 |
660 |
1050 |
2.5-3.5 |
30 |
|
1515×660×2100 |
|
MTPS-25Y/B |
Φ240 |
660 |
1050 |
2.5-3.5 |
30 |
1800-2100 |
1515×1220×2100 |
|
MTPS-30Y/A |
Φ300 |
800 |
850 |
4-6 |
37-45 |
|
1690×710×2180 |
