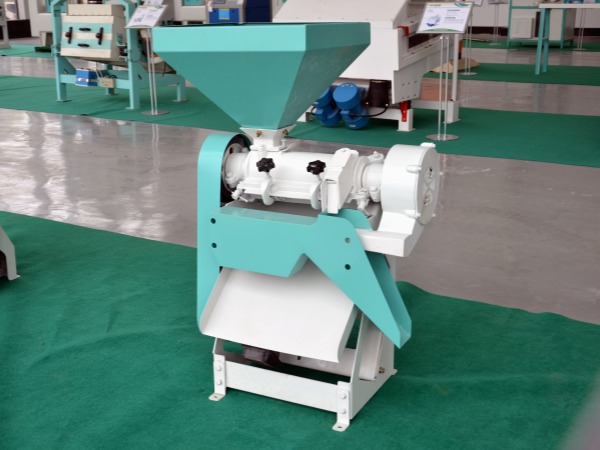

6NF-90 multifunctional corn peeling machine can remove the bran both of corn and wheat. There has 380V motor with 4KW power installed inside. It can process 300kg of grains, such as corn, wheat, sorghum and puddy.
Patent No.: ZL 2010 2 0689527.7

Working Principle:
The machine includes 5 parts: charge hopper, hulling case, transmission device, separating device, and machinery rack. Corn is sent into machine through charging hopper, and then is sent to hulling case by the screw propeller. The hulling case can produce big pressure, and the germ and bran of corn can be peeled off by the friction between roller and sieve. The discharging outlet has grain purifying device, which can remove the micro bran further. And there has highly efficient air suction chamber installed inside of the machine which can clean the bran from the peeling process.

Features:
1. Easy structure, good manufacturability in processing and installation, small volume and convenient operation. The whole machine only occupies an area of less than one square meter and we only need to install pitch screw for fixing.
2. Wide applicability: Can be used to peeling and polishing corn, wheat, rice, and sorghum.
3. Internally installed efficient winnowing and dust removing blower.
4. High output and good effect: The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.

Finished Product

Technical Parameter
