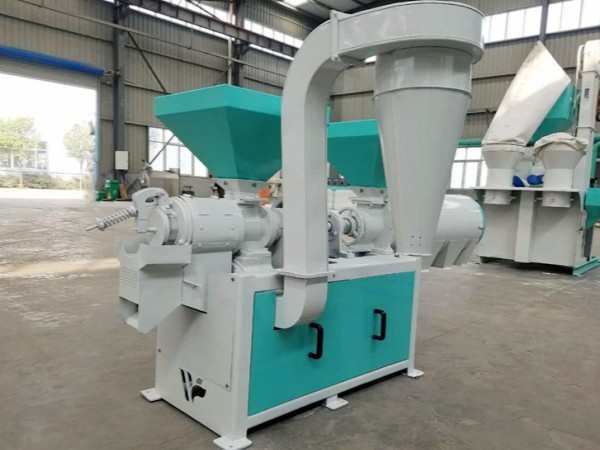

HTZ28-5B Corn Peeling and Flour Milling Machine
HTZ28-5B Corn Peeling & Milling Machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The production capacity is 500kg/h, and an 11kw motor can drive the entire machine to operate. It is suitable for small size of food processing factories in corn, wheat and sorghum peeling, corn grits and flour milling.
Working Principle
This machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The clean raw grain is conveyed to the feeding port for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process. Kernel size can be adjusted by grits making bolt. Grits granularity can be controlled by adjusting the diameter between the two fluted discs.
Features:
1. Easy operation, family use, simple structure, safety, reliability.
2. High quality of the end products, less dust, low power consumption.
3. Adjustable gears to meet your different needs.
4. It can be driven by diesel engine to meet the requirements of the small workshops in the remote areas.
Finished Product
Technical Parameter
|
Type |
Capacity（kg/h） |
Power（kw） |
Voltage（v） |
Spindle Speed（r/min） |
Weight（kg） |
Dimension（mm） |
||
|
HTZ28-5B |
corn peeling |
corn grits |
corn flour |
11 |
380 |
1000-1200 |
350 |
2200×900×1200 |
|
500 |
500 |
300 |
||||||
