Beans/Pulse Cleaning and Peeling Line(Dry Dehulling Process)
Complete Beans Cleaning and Peeling Project
Project Introduction:
Win Tone beans cleaning and peeling plant adopts excellent automatic solutions and can reduce labor cost and production cost. Meanwhile, it can reduce the influence from impurities, dust and bran. This complete plant can process soybean, broad bean, lentil, cowpea, mung bean, black soya bean, kidney bean and other beans.

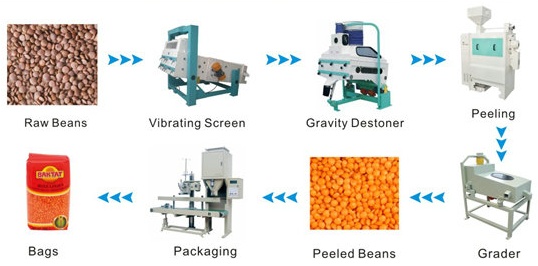

Working Process:
1. Cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.
2. Color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.
3. Peeling and splitting section: it adopts peeling, splitting, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)
1) Peeling and splitting: it can remove the bean bran, split the bean kernels and separate and collect corn kernels by effective aspiration system;
2) Brushing: it can separate the micro bran and dust which adheres to the material surface.
4. Grading section: it adopts different screens and classify the material into different grades according to the size.
5. Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.
End Products Technical Index:
1. Range of application：soybean, broad bean, lentil, cowpea, mung bean, black soya bean, kidney and other beans peeling.
2. Structure of the end products: peeled bean.
3. Yield rate: it can be adjustable according to your requirement.
4. Technical index of the end products:
A. Sand content：<0.02%
B. Magnetic metal content: <0.003/kg
C. Moisture：storage type <16%
D. Appearance and taste: good color, high peeling efficiency, bright and smooth bean kernels, pure bean taste.
Technical Parameter
|
Project Model |
Power(kw) |
Power Consumption(kw/h) |
Capacity(t/24h) |
Workshop Dimension(l*w*h/m) |
|
10t |
24 |
38-40 |
10 |
10*4*4 (steel structure) |
|
20t |
56 |
38-40 |
20 |
16*5*5 (steel structure) |
|
30t |
72 |
38-40 |
30 |
20*5*5 (steel structure) |
|
50t |
119 |
38-40 |
50 |
20*5*7 (steel structure) |
|
100t |
238 |
38-40 |
100 |
30*5*7 (steel structure) |

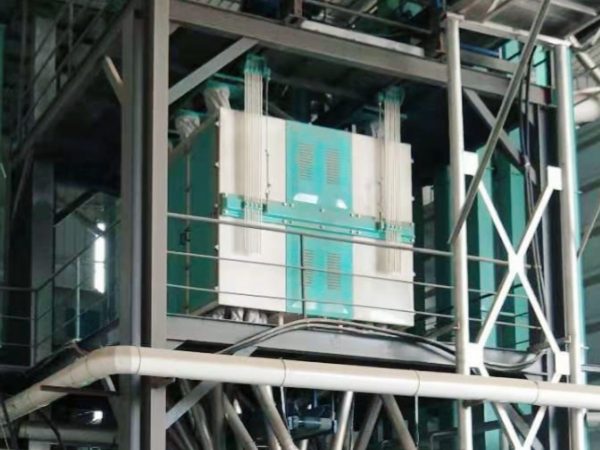

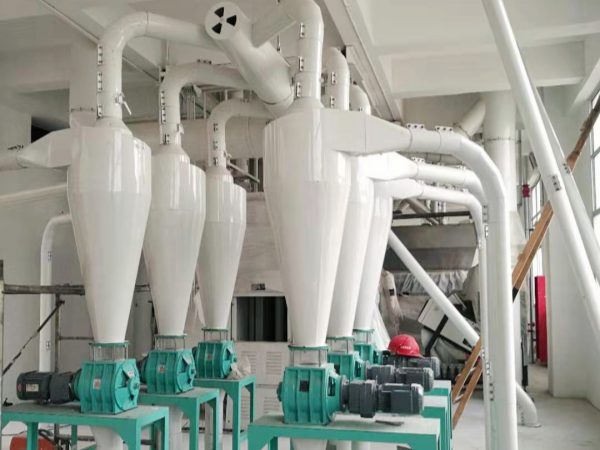

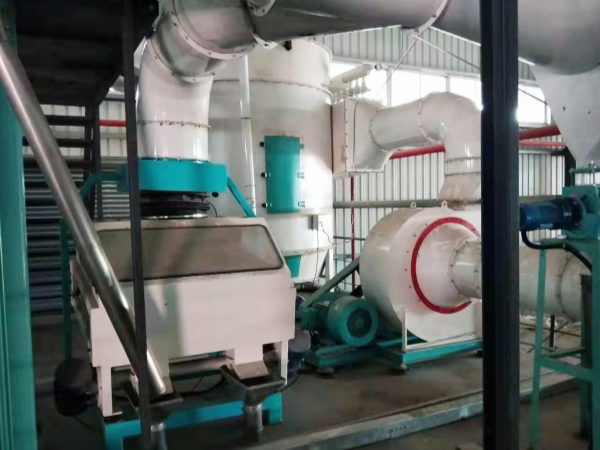

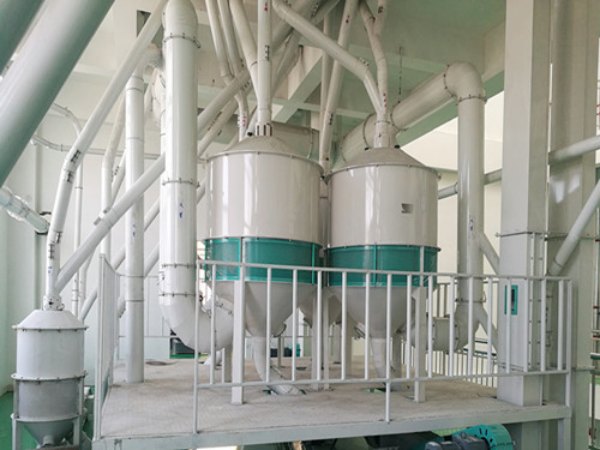

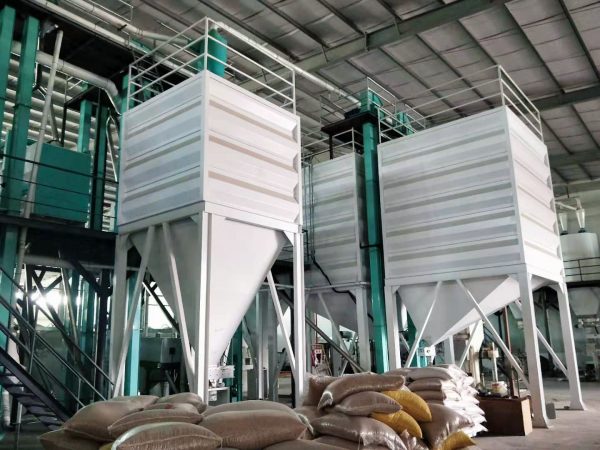

Installation of 200TPD Beans Cleaning and Peeling Project:
1 Ton/hour Lentil Peeling and Splitting Production Line Delivered to Ethiopia
China Win Tone Machinery devotes itself to the research and development of grain processing equipment and complete
Malaysia 1Ton/Hour Lentil Peeling Plant Installation
1 Ton/Hour Lentil Peeling Plant was installed successfully in Malaysia.
